Crane Motor Reels Drum for Bucket Wheel Stacker Reclaimer Cable Reel High Current -40℃~+45℃
Подробная информация о продукте:
| Место происхождения: | Шэньчжэнь, Гуандун |
| Фирменное наименование: | JARCH |
| Номер модели: | ДЖСР-CRM200-56P25-D48-65 |
Оплата и доставка Условия:
| Количество мин заказа: | 1 комплект |
|---|---|
| Цена: | US$10000~60000/SET |
| Упаковывая детали: | Деревянный ящик |
| Время доставки: | 70 дней |
| Условия оплаты: | Т/Т |
| Поставка способности: | 50 комплектов/месяц |
|
Подробная информация |
|||
| Модель установки: | Горизонтальная намотка | Режим связи: | Сетевая связь RS485 или TC/IP |
|---|---|---|---|
| Материал шланга: | ПВХ | Кабельный цвет: | Черный/синий/красный |
| Тип: | Тип с приводом от двигателя | Упаковка продукта: | Деревянный |
| Женский конец типа: | ВЭК | Сопутствующий товар: | Катушка для оптоволоконного кабеля |
| Кабельный механизм блокировки: | Автоматический втягивание | Максимальная температура: | 150 ° F. |
| Материал вьюрка: | Пластик/металл | Распылительная насадка в комплекте: | Да |
| Кабель Метриал: | ПВХ (красный цвет) | Куртка: | Резина |
| Использование: | Порт | ||
Характер продукции
JARCH Crane Motor Reels Drum for Bucket Wheel Stacker Reclaimer Cable Reel High Current -40℃~+45℃
Product Description
Motorised Reels drum for Bucket Wheel Stacker Reclaimer
| Power mobile equipment with motorised reels to ensure the safe and reliable transmission of power, data and fluids. |
Reel Specifications and Dimensions
Feature

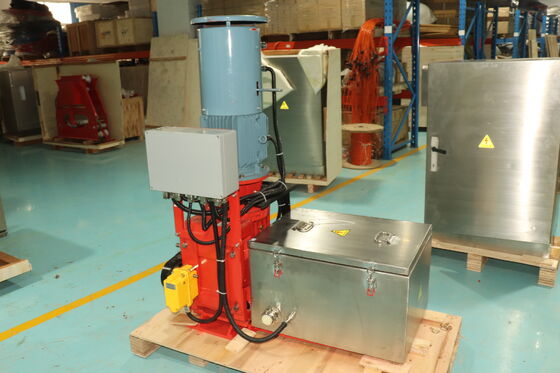

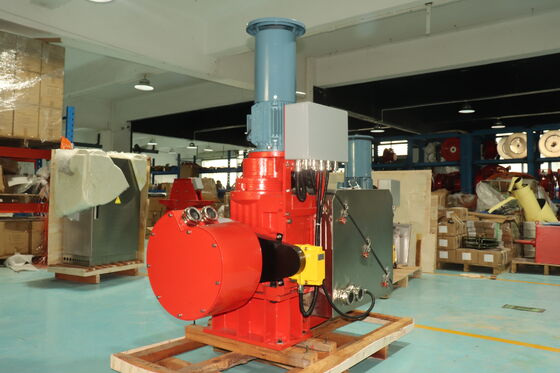

1. Motor (with drive) Standard squirrel cage or torque motors, according to IEC Norms. Hydrodynamic cable reels can be supplied with a pneumatic or hydraulic motor.
2. Gearbox or Torque Unit Sever gearboxes and eight torque unites are available with variable output torque from 10-1200daNm.

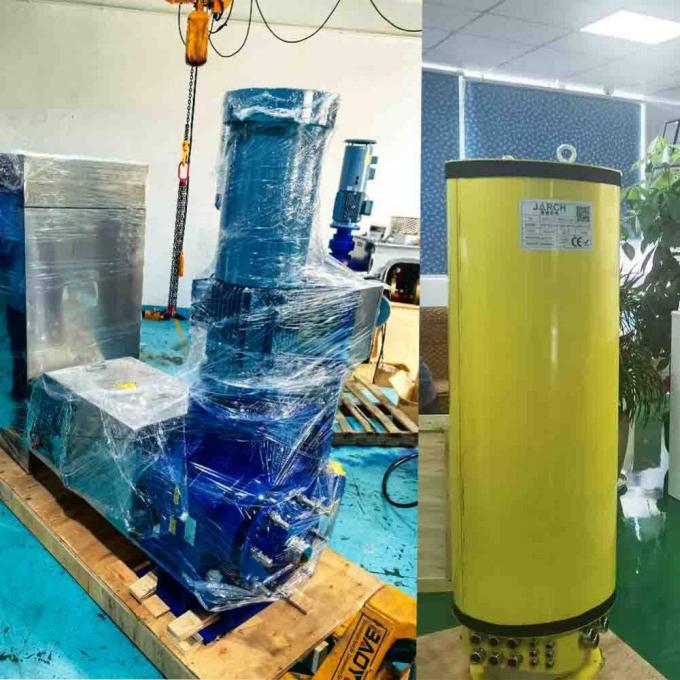

3. Collector Standard sizes of collectors are available for power and signals. Current ratings vary from 10 to 2400Amp, voltages up to 30kV. We also manufacture customised collectors exceeding the above parameters.

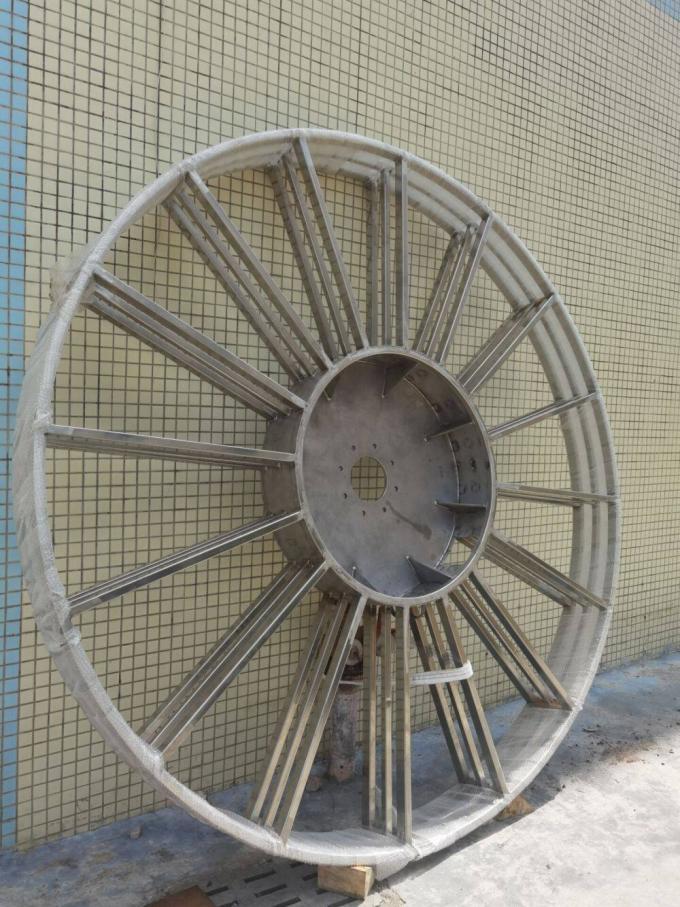

4. The drums are composed of standard elements and can easily be adjusted to required widths. Standard drum diameters range from 300mm to 8700mm.
Applications
The JARCH product range includes cost-efficient motorised reels systems produced in high volume series and relatively small volume projects. We support customers from design to commissioning of products and systems ready for use in the harshest operating and ambient conditions.
JARCH manufactures motorised reels for horizontal, vertical, continuous and intermittent use. We provide tailored solutions for LV or MV applications, with or without fibre optics, for various applications.
Ports & Maritime

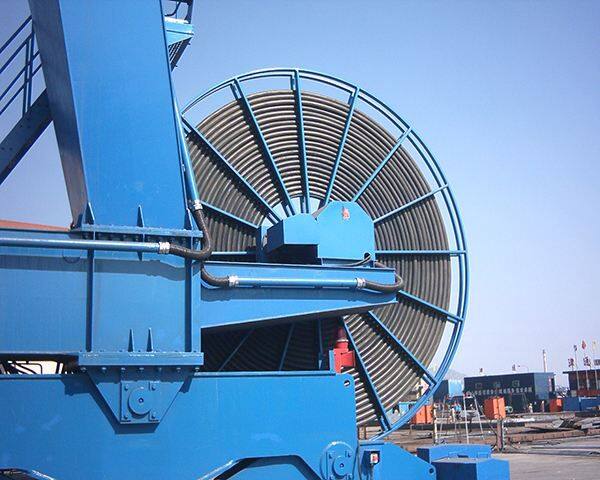

JARCH motorised cable reels are integrated in all potential ports crane applications, at the quay, at the yard or at the intermodal terminal.
Typical applications:
-
Ship-to-shore (STS) cranes.
-
Automatic stacking cranes (ASC).
-
Rail mounted gantry (RMG) cranes.
-
Electric rubber-tyred gantry (E-RTG).
-
Ship loaders.
-
ShorePower systems.
Mining & Tunnelling
JARCH powers a broad range of mobile equipment operating in underground and open pit mining, and tunnelling applications, including:
-
Tunnel boring machines (TBM).
-
Face drilling machines.
-
Stacker-reclaimers.
-
Electric rope shovels.
Industry
JARCH engineers indoor and outdoor mobile construction machines, travelling platforms and overhead cranes operating in a variety of sectors such as:
-
Construction.
-
Steel manufacturing.
-
Waste water.
-
Chemical plant.
-
Nuclear power plant.
-
Theatres.
-
